Détails sur le produit:
Conditions de paiement et expédition:
|
| Couleur de l'isolation: | Toute couleur | Garantie: | 2 ans |
|---|---|---|---|
| taille: | 0,50 mm² à 400 mm² | Voltage d'essai: | 2500V/5min |
| Type de conducteur: | Conducteur en cuivre massif (classe 1) | La norme: | Pour l'utilisation de l'aéronef |
| Échantillon: | Gratuit (50 cm) | société: | groupe shenghua |
| Marque: | Sh câble | ||
| Mettre en évidence: | Copper Building Cable Wire,750V Building Cable Wire,450V Building Cable Wire |
||

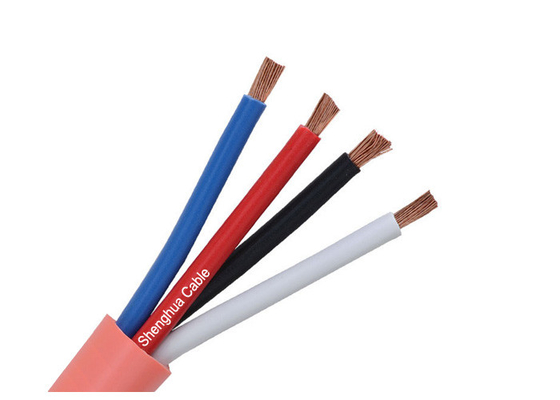

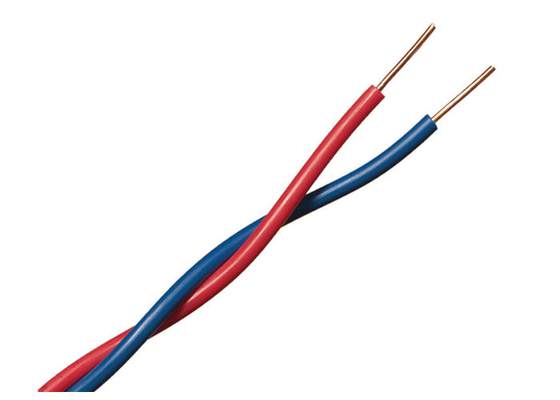

450V 750V Low Smoke Zero Halogen Wire , Copper Building Wire 2 Years Warranty
Shanghai Shenghua Cable (Group) Co., Ltd.—a Top 500 Chinese manufacturer with 20+ years of expertise—sets a new benchmark in fire safety with its 450/750V LSZH Copper Building Wire. Engineered for high-risk environments like subways, hospitals, and data centers, this IEC-certified solution combines zero-halogen innovation, extreme thermal resilience, and global compliance to protect lives and assets worldwide
Key Specifications:
| Parameter | H05Z-K (0.5-1mm²) | H07Z-K (1.5-240mm²) |
|---|---|---|
| Voltage Rating | 300/500V | 450/750V |
| Temp Range (Fixed) | -30°C to +70°C | -25°C to +90°C |
| Bending Radius | 4D (D<8mm) | 6D (D>12mm) |
| Short-Circuit Temp | 150°C (5s) | 160°C (5s)
3
|
Applications:
CONSTRUCTION
Conductor: Solid or Stranded copper conductor
Insulation: LSZH (Low Smoke Zero Halogen)
CHARACTERISTICS
Voltage Rating (Uo/U):
H05Z-K - 0.5mm2 to 1mm2: 300/500V
H07Z-K - 1.5mm2 to 240mm2: 450/750V
Temperature Rating: -25°C to +90°C
Minimum Bending Radius:
Up to 35mm2: 4 x overall diameter
50mm2 and above: 6 x overall diameter
Insulation Colour:Red Black Blue Orange White Yellow Green/Yellow Grey Brown Violet Pink
Single-core non-sheathed cables with flexible conductor for internal wiring for a conductor of 90℃
Code designation: 60227 IEC 08 (International), BV-90 300/500V(China)
Temperature range :
during installationi : +5 °C up to +90 °C
fixed installed : -30 °C up to +70 °C
at short circuit of max. 5 s : up to 150 °C
ambient temperature at storage : up to 40 °C
Nominal voltage : Uο/U = 300/500 V
Test voltage : 2000 V
Minimal inner bending radius : 4D for D < 8 mm
5D for 8 - 12 mm
6D for D > 12 mm
Payment Terms:
1) T/T, 30% T/T deposit before production, pay the balance before shipment.
Order and Mass Production:
1) We will send PROFORMA INVOICE to you when the order is confirmed.
2) We will start to have mass production when confirm our sample and 30% T/T deposit received.
3) Quality is under the control and supervision during the production.
4) Packing information will be confirmed before the production finished, If no special requirment, using our normal package.
Advantage of our factory:
1. More than 20 years of producing many kinds of electric wires and cables.
2. CCC/VDE/CE/UL/CSA/CE/PES/REACH/ROSH Certificates.
3. Conductor can be used pure copper wrie or CCA cheap conductor.
4. MOQ 1000 meters, good service.
5. OEM are welcome. We can also produce standard or non-standard wires and cables.
